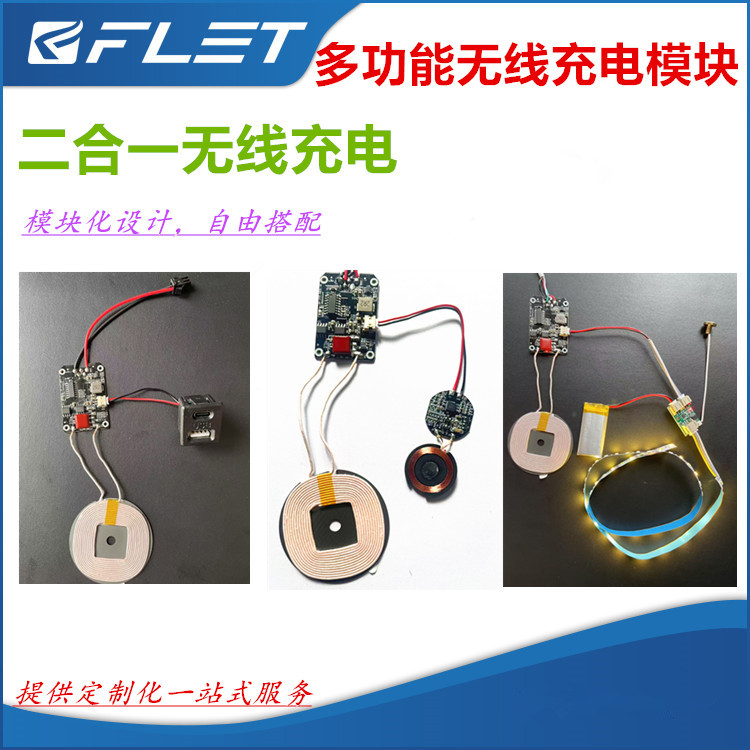

Module charging, mobile phone, 15W, 2 in 1
Select Air or Sea below for an extra product-price discount.
3 available combinations · pick rows below to build your order
Variations & order
3 in stockEach variation starts at 2 pcs when added. Weight is estimated (~0.017 kg / unit). Final shipping is calculated after weighing in Bangladesh.
Main features: ● Compliance with WPC V1.2.3 wireless charging specifications ● Product standard: QI ● Support Samsung fast charge agreement, compatible with iPhoneX/8/8P fast charge charging protocol ● Built -in MCU, 12 BITS high -precision ADC, communication decoding ● Input voltage/current: 5V-2A, 9V-1.67A 12V-1.5A ●Output current: 5V-1A, 9V-1.66A ●Support maximum 20W power output ● QI wireless output 15W ● Wired output 5W ● Efficiency is 75%-80% ● Sensor distance≤10mm ● Working frequency: 100-200kHz ● Support dynamic energy balance ● Smart identification, 5W/7.5W/10W 15W charge ● There are four protection functions such as overcurrent, over pressure, over temperature, short circuit, etc. ● Support foreign body examination (FOD) Wireless charging watch module: 5V-1A input: output power: 2.5W Motherboard size: 43mm*29mm*4mm Coil size: diameter 50mm
