German Resense six-axis torque sensor kit HEX 12
Select Air or Sea below for an extra product-price discount.
1 available combinations · pick rows below to build your order
Variations & order
1 in stockEach variation starts at 2 pcs when added. Weight is estimated (~0.5 kg / unit). Final shipping is calculated after weighing in Bangladesh.

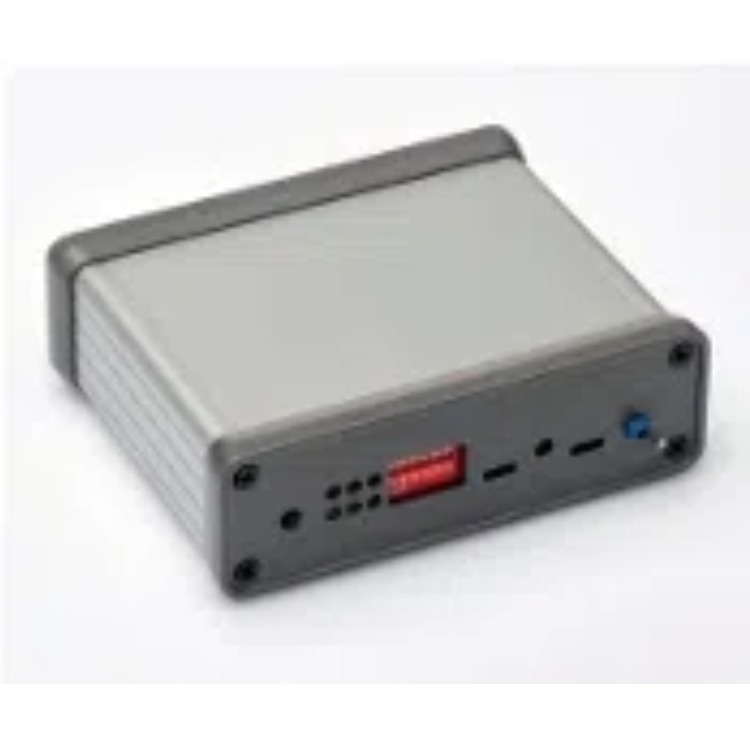

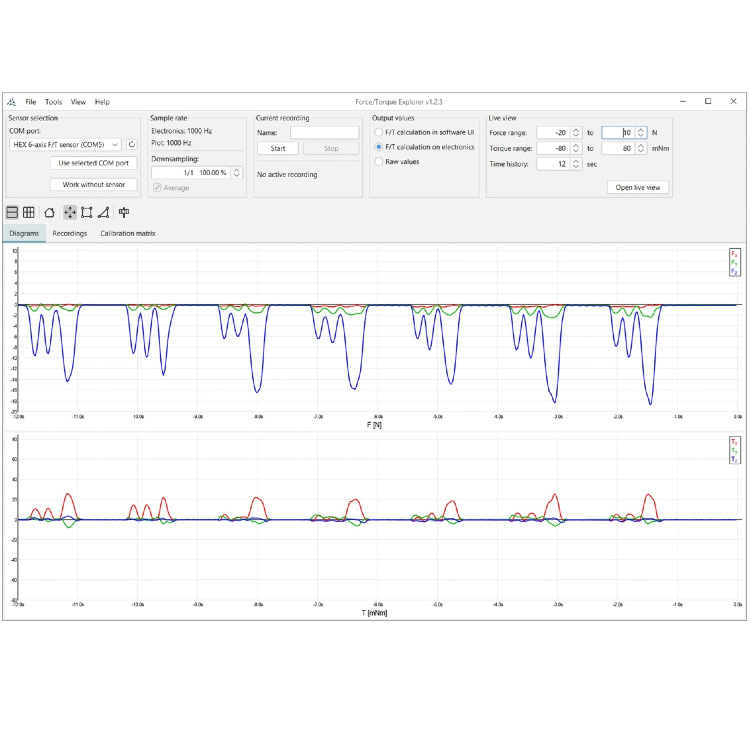

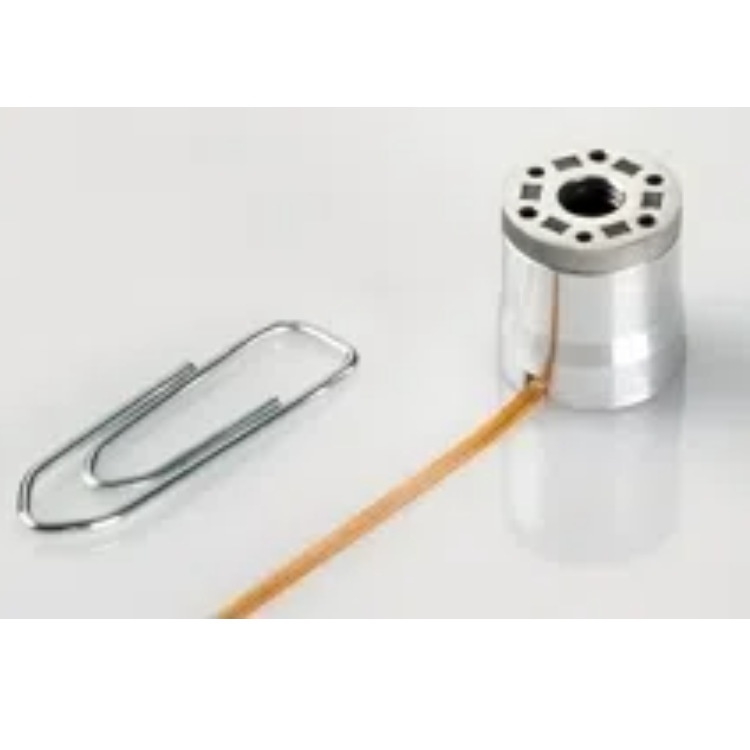

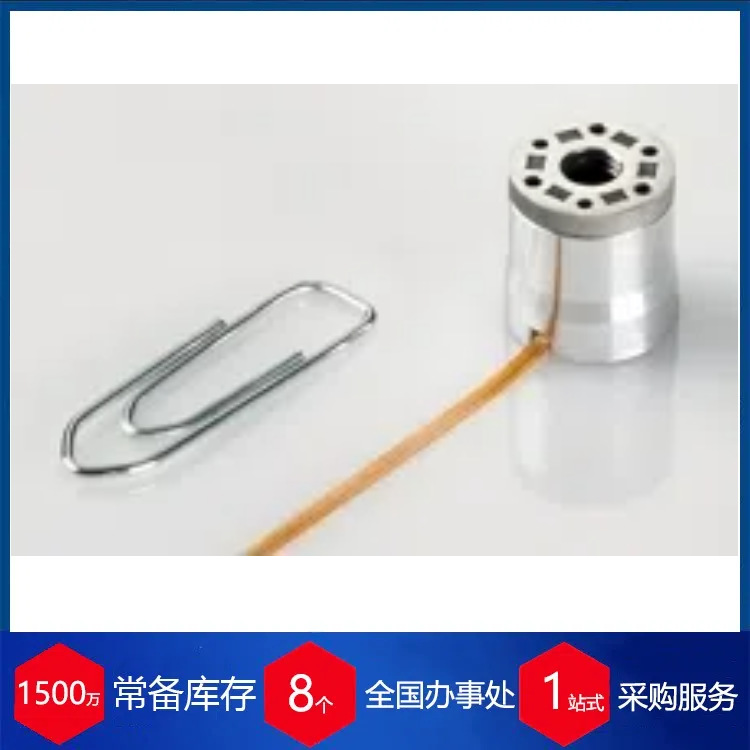

Product Category: Six-axis torque sensor Electronic box software Kit Main model : HEX10 HEX12 HEX21 HEX32 Product introduction : six axis force / Torque sensor kit includes: Force / Torque sensor, electronics box and application software for visualizing measured values. HEX 12 It is the world's smallest commercial six-axis force and torque sensor.It is suitable for applications where space is limited. Size : diameter : 12.5 mm high : 11.0 mm weight : 3.3 g Nominal measuring range : Fx, Fy, Fz: ± 25 N Mx, My, Mz: ± 0.125 Nm Technical specification : Accuracy : 1% String disturbance : 3% Overload : 300% Product Features : Material : 5 grade titanium alloy Protection level : IP20 temperature range : 0 - 50 ° C technology : foil strain gauge cable : With axial / Radial cable outlet and Sub-D-HD Connector for flexible cable
