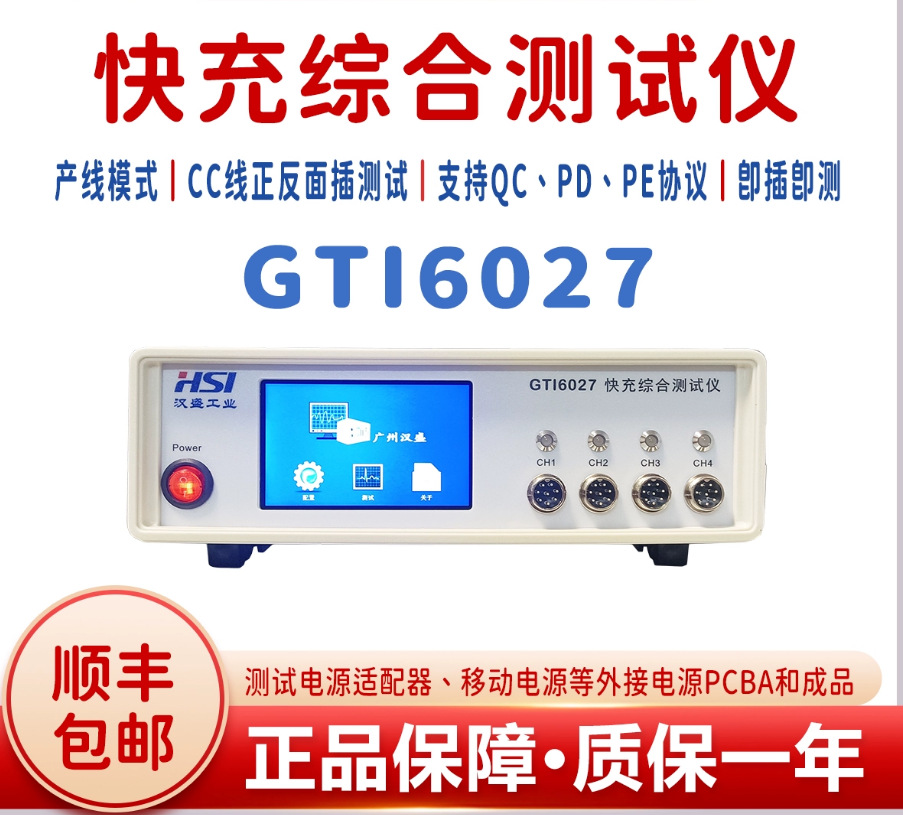

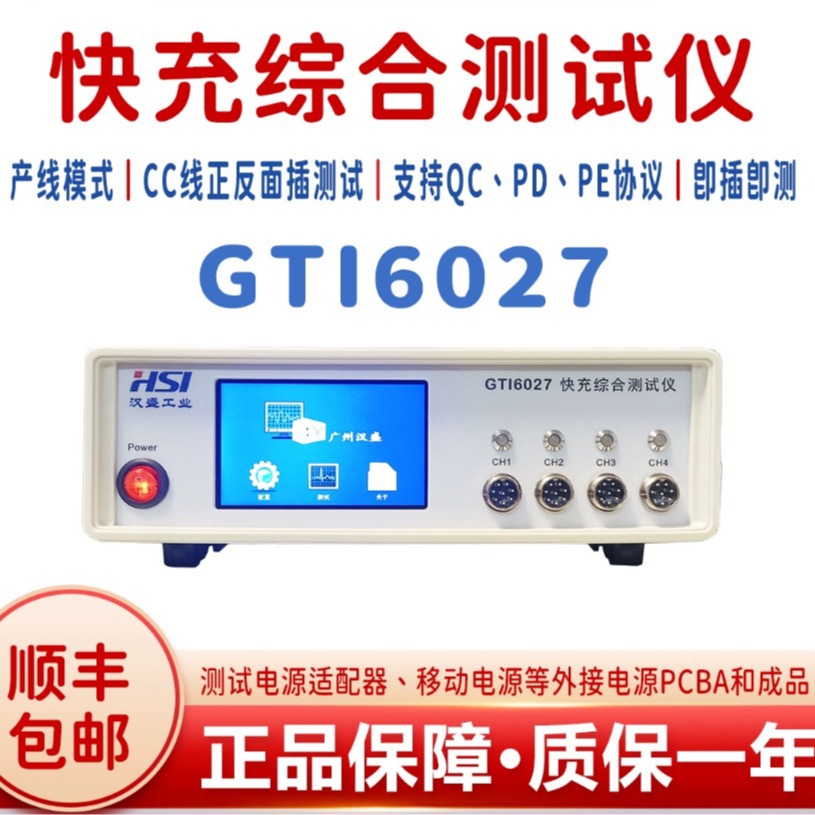

Fast -charging Full Association QC PD multi -road electronic load detection GTI6027 GTI60H charging head tester

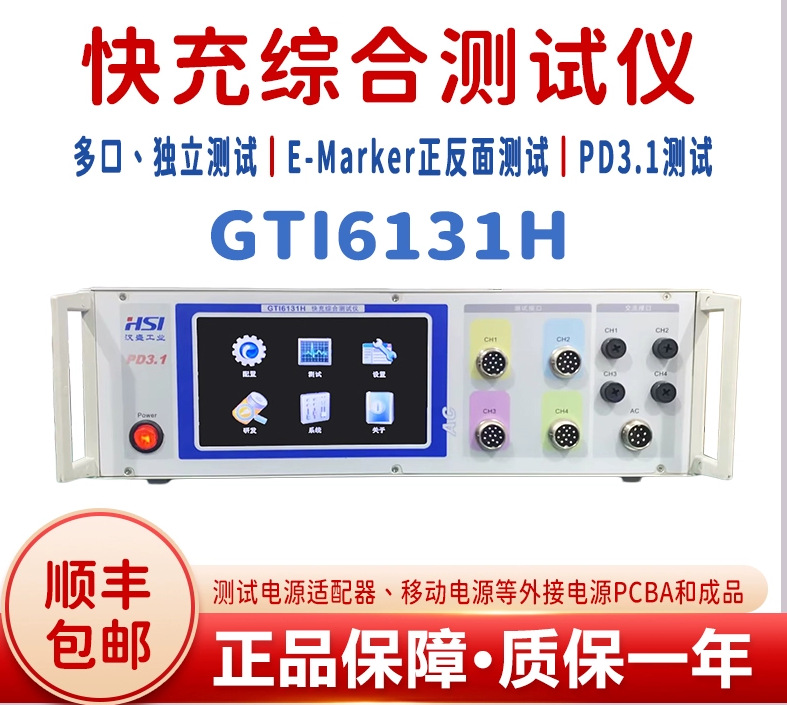

PARAMETER LIST GTI6131H fast charging tester parameter table Function GTI6131H QC2.0/QC3.0/PD2.0 Support fast charging protocol /PD3.0/PE1.0/PE2.0 /AFC/FCP/SCP/PD3.1 Maximum test voltage 60V Maximum test current 10A Maximum test power 150W Load mode CC/CV Voltage accuracy ±(0.5%+0.025%FS) Current accuracy ±(0.5%+0.025%FS) Minimum resolution voltage 1mV, current 0.5mA Basic protection mode OCP, OVP, OTP Supports 35 steps Number of stored files: 120 groups Display: 7-inch color touch screen Working mode Production line/R&D Remote measurement Remote measurement Testing the front and back of the CC line Testing the front and back of the CC line D+D-front and back test D+D-front and back test Ripple test Ripple test protocol detection protocol detection Overcurrent protection point test Overcurrent protection point test PPS scan test PPS scan test Test data export standard data disk Independent testing between channels Independent testing between channels PDO test PDO test VDM test VDM test Multi-port combination test Multi-port combination test Built-in E-Marker Built-in E-Marker AC parameter test AC parameter test Can be connected to an external AC source Can be connected to an extern…
