Huawei, module, mobile phone charging, 2/4, 12v, 24v

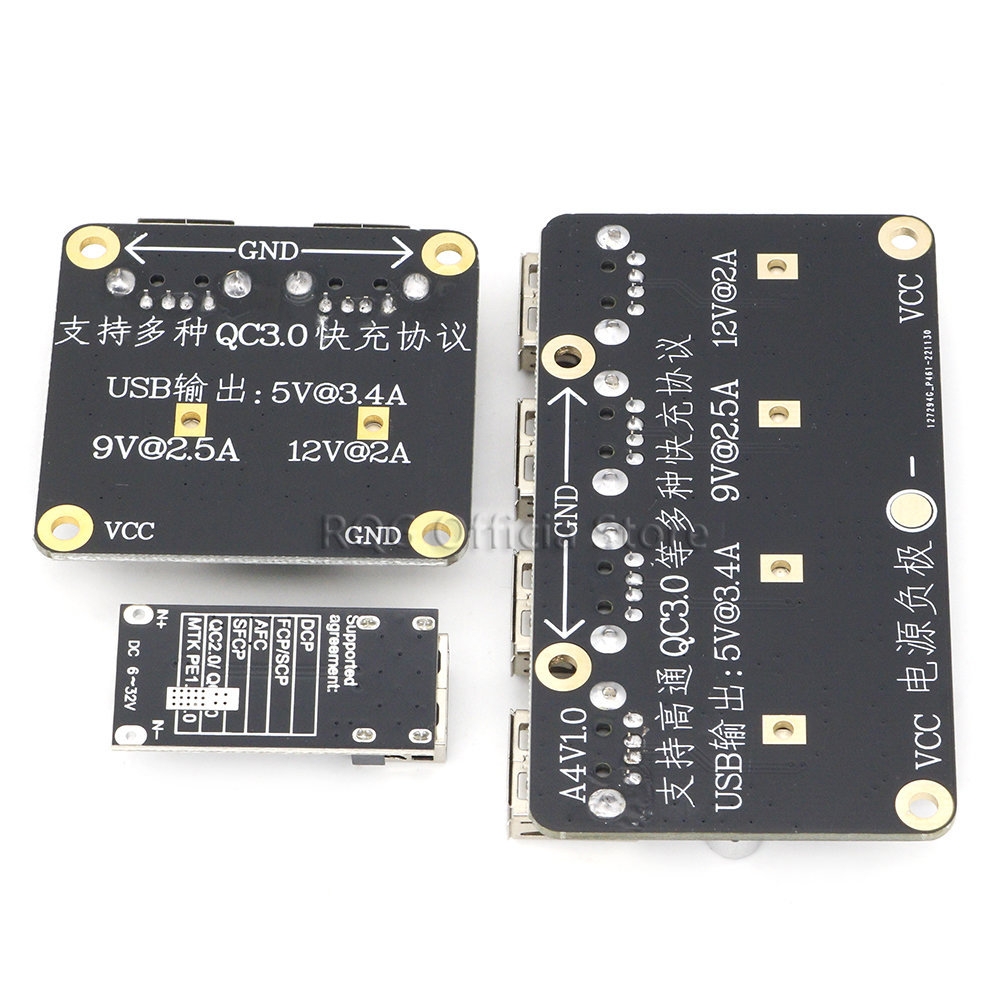

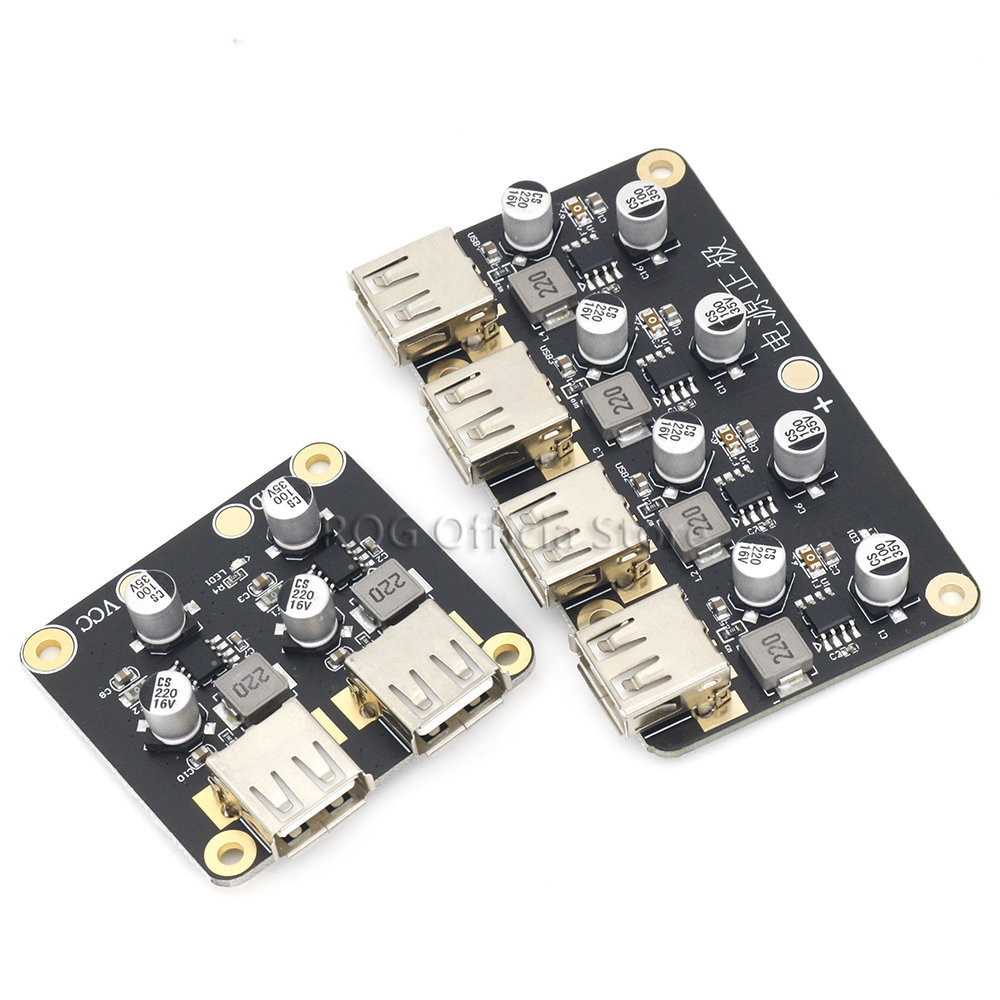

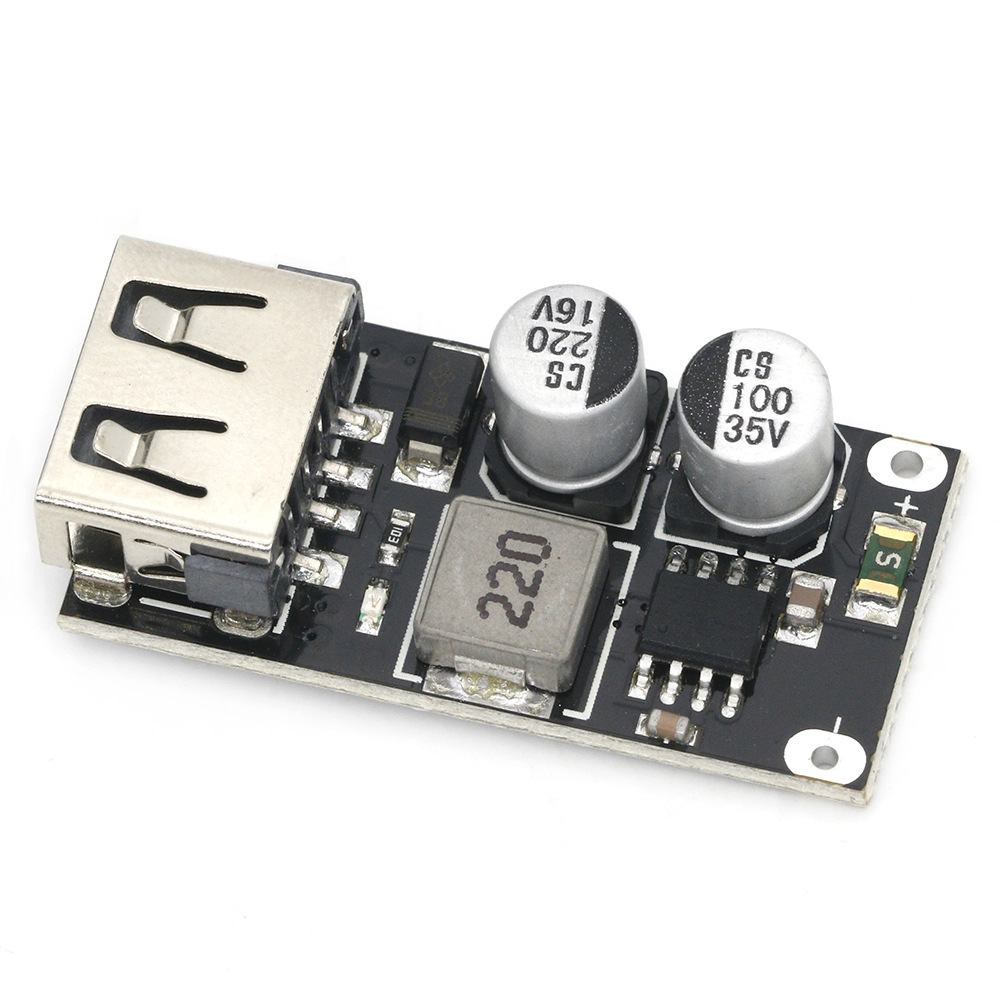

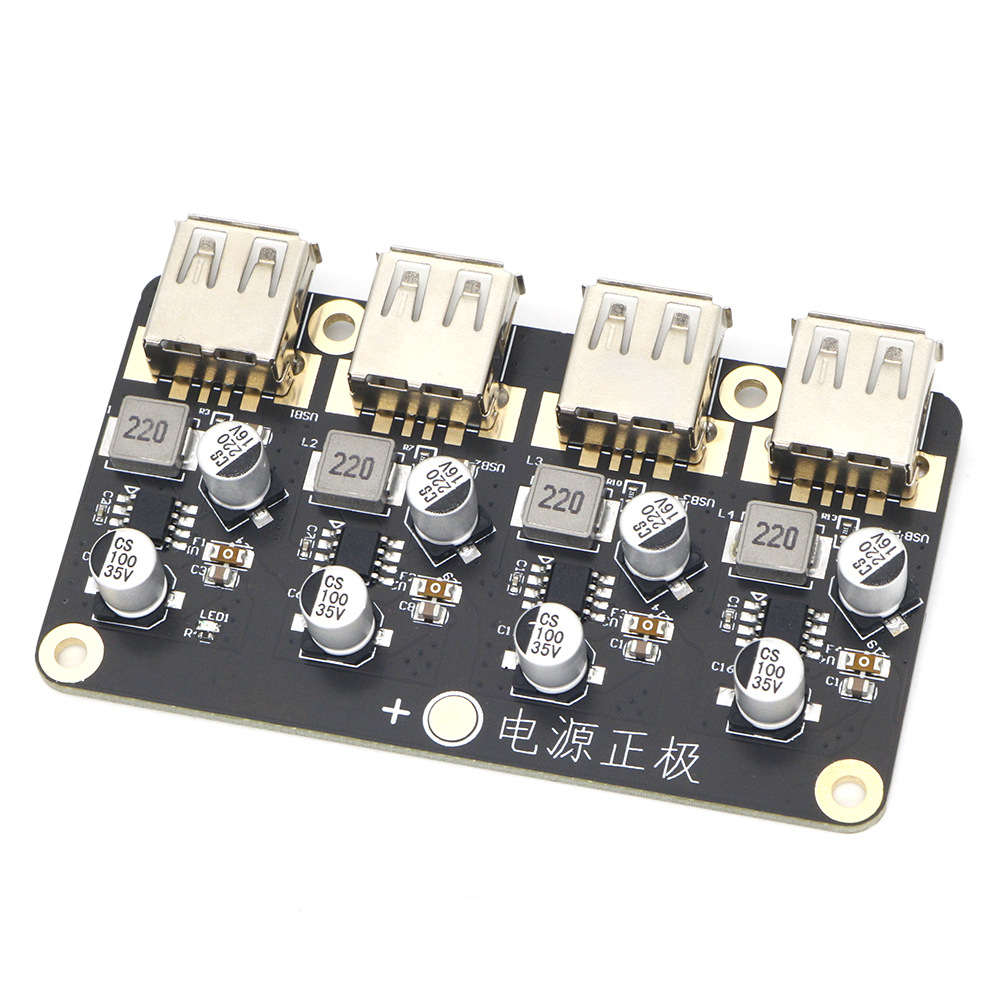

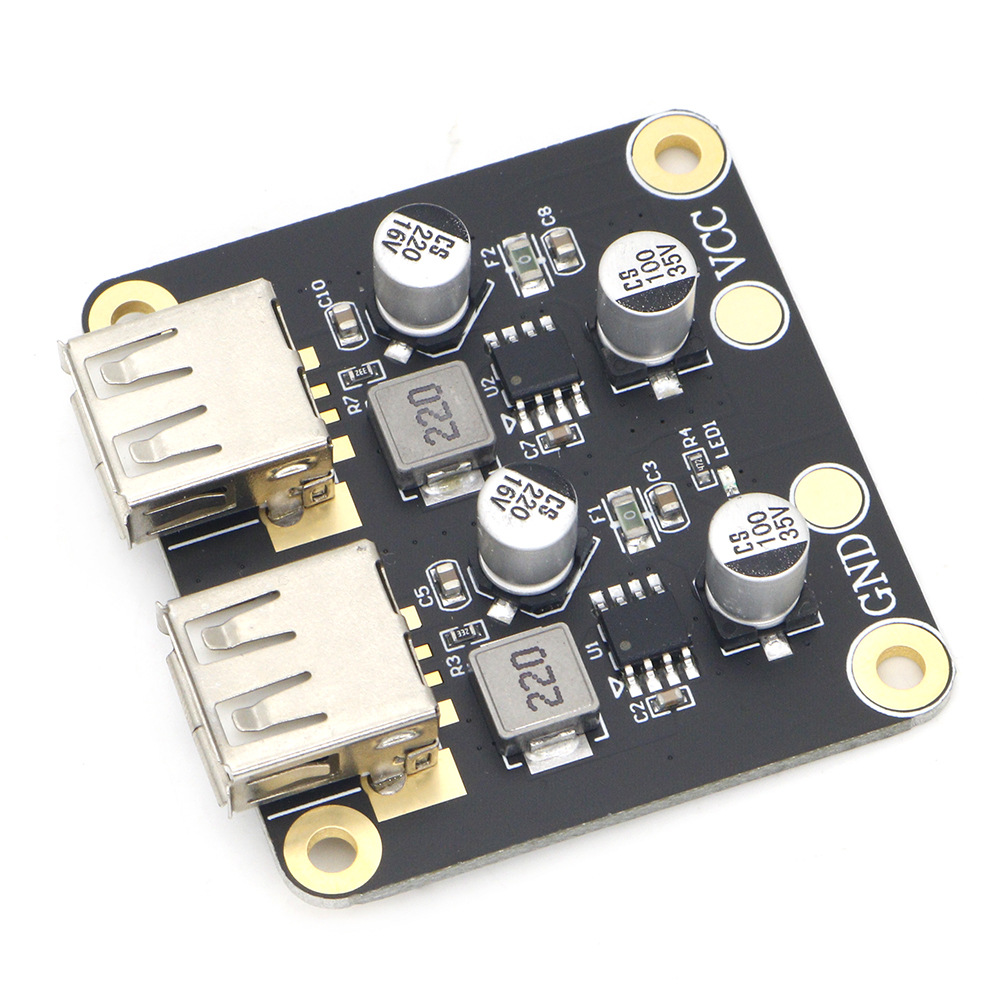

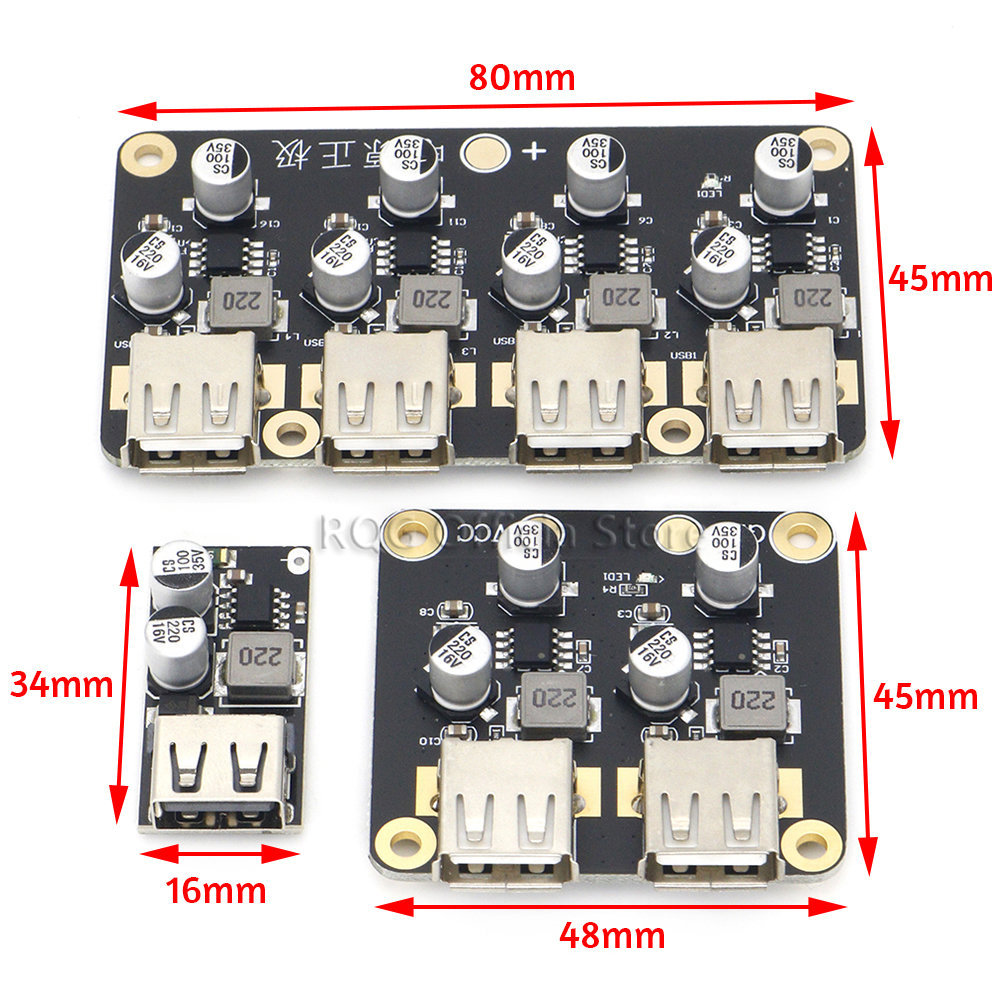

Features: Fourth Road supports QC 3.0 fast charge protocol, which can support fast charging at the same time, which can output 5V 9V 12V (required mobile phone protocol support) voltage, output current adaptation, single -road power consumption 24W, 4 -way module power consumption 96W, 4th road module power consumption of 96W, 4th road module power consumption 96W, 4th road module power consumption 96W.PCB uses FR-4 1.6mm board thick design, optimizes layout wiring, design tightly, opens on the back window to dissipate heat, the full load work temperature is low, the current of the machine is 0.013A, and the module has the output voltage compensation function. Note: This module is 4 Road Voltage For fast charging modules, please use 12V-30V DC power supply.   one.Module characteristics 1. Built -in synchronous switch antihypertensive converter chip 2. Input voltage range: 4.5V to 32V (input voltage must be higher than the output voltage, because it is a voltage reduction module) 3. The output voltage range: 3V to 12V, automatically adjust according to the fast charge protocol 4. Output power: 24W (24W ( 4V@3.6A , 5V@3.4A, 9V@2.5A, 12V@2A, etc.) 5. Compensation for output voltage wi…
