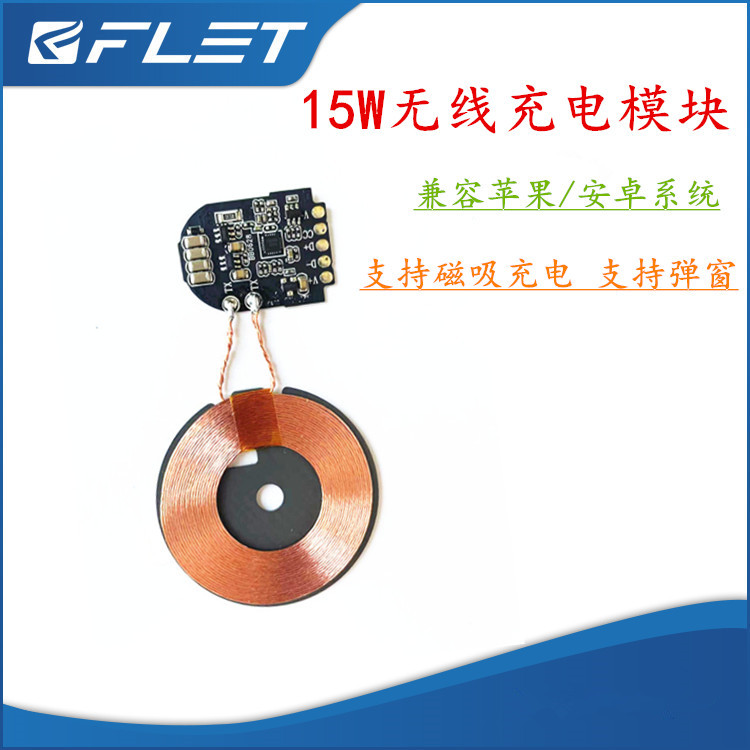

LiveMagnetic small board (mainboard + coil)Variations
Gallery
Apple, module charging, motherboard, iPhone17 ProMax, 15W
Select Air or Sea below for an extra product-price discount.
4 available combinations · pick rows below to build your order
Variations & order
4 in stockEach variation starts at 2 pcs when added. Weight is estimated (~0.012666666 kg / unit). Final shipping is calculated after weighing in Bangladesh.
Main features: ● Compliance with WPC V1.2.3 wireless charging specifications ● Product standard: QI ● Support Samsung fast charge agreement, compatible with iPhoneX/8/8P fast charge charging protocol ● Built -in MCU, 12 BITS high -precision ADC, communication decoding ● ● Input voltage/current: 5V-2A, 9V-1.67A ● ● Output current: 5V-1A, 9V-1.1 9V-1.66A ● Support maximum 15W power output ● Efficiency is 75%-85% ● Sensor distance≤8mm ● Working frequency: 100-200kHz ● Support dynamic energy balance ● Smart identification, 5W/7.5W/10W 15W charge ● There are four protection functions such as overcurrent, over pressure, over temperature, short circuit, etc. ● Support double foreign body examination (FOD) ● PCBA board size: 磁吸大板（模块）：长24mm*宽21mm*厚2.0mm 线圈直径：43mm 磁吸小板（模块）：长18mm*宽17mm*厚2.0mm 线圈直径：43mm
