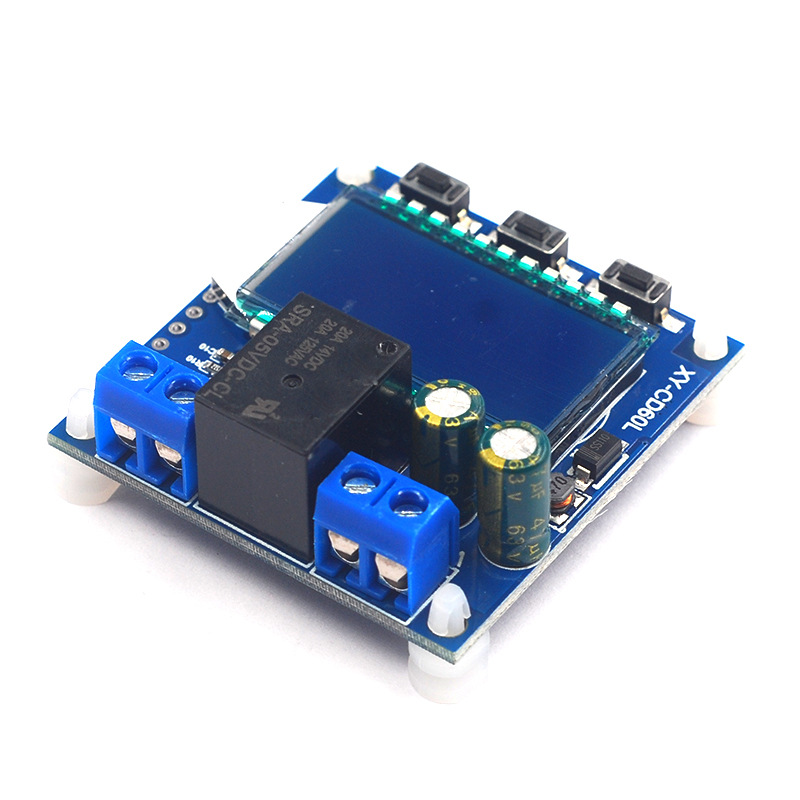

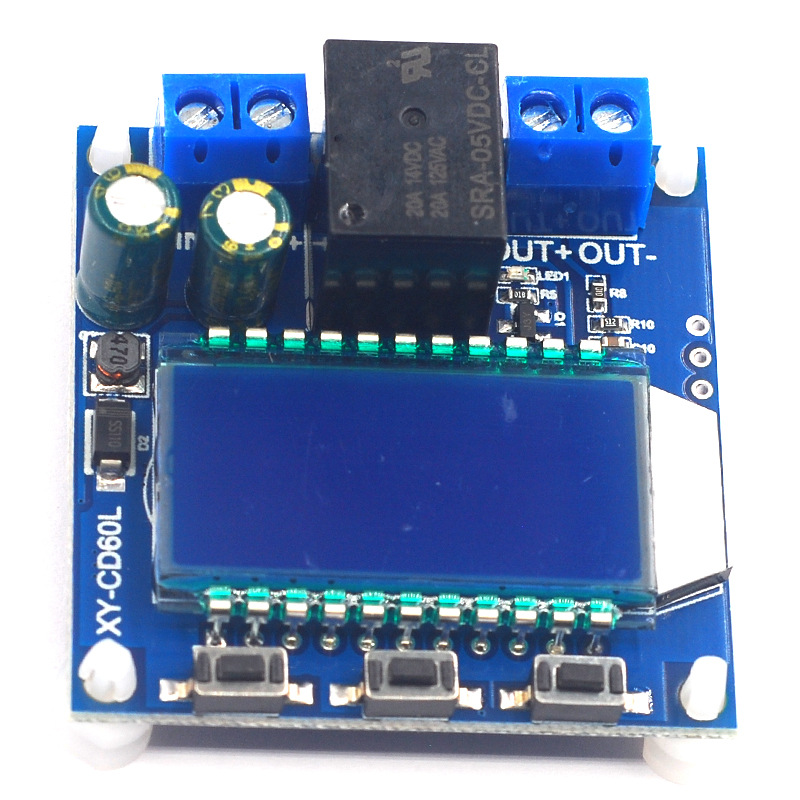

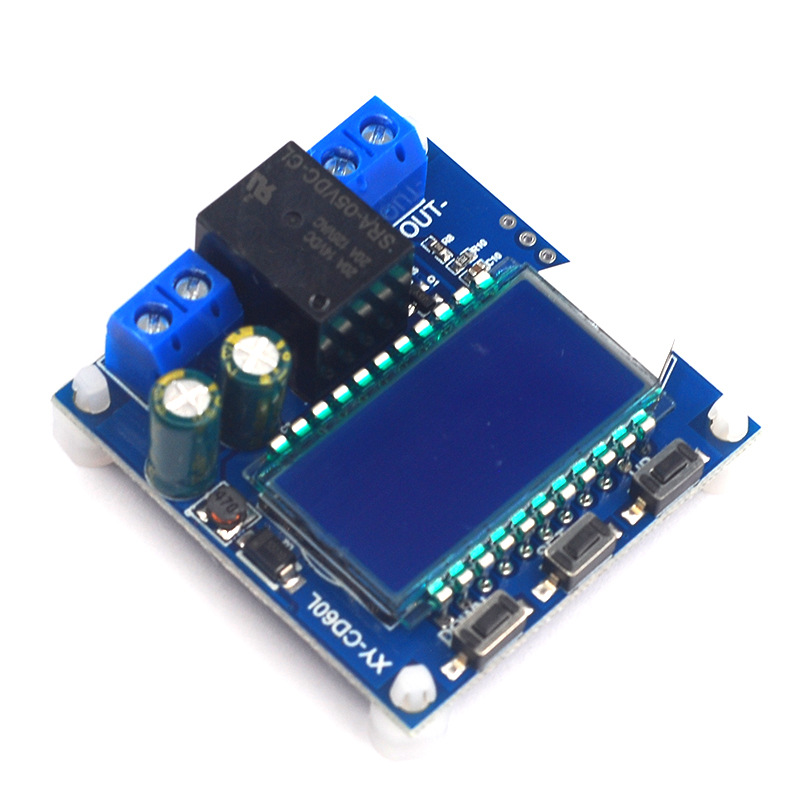

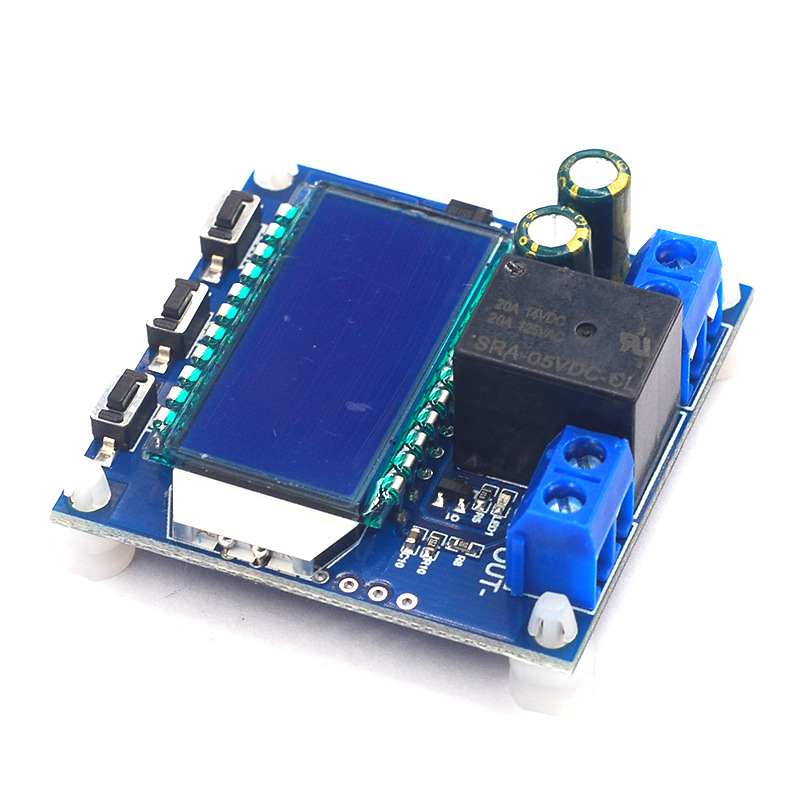

Battery charging control module full power outage DC voltage protection undervoltage loss protector CD60

The battery battery charging control module is full of power-off DC voltage protection, the lack of voltage, a capacitor XY-CD60L Charging mode in By setting the upper limit voltage UP and the lower limit voltage DN; when the battery voltage≤The lower limit voltage DN, the relay is turned on, and the charger starts to charge the battery; when the battery voltage≥The upper limit voltage is UP, the relay is off, and an automatic charge is completed; the relay is on, and IN flashes, indicating that the charging and discharging mode OUT is in progress. By setting the upper limit voltage UP and the lower limit voltage DN; when the battery voltage≥The upper limit voltage up, the relay is turned on to start discharge; when the battery voltage≤The lower limit voltage DN, the relay is disconnected to complete the automatic discharge function; the relay is turned on, OUT flickering, indicating that it is discharge. Function Description: 1. Calculation of voltage percentage: battery voltage/(upper limit voltage-lower limit voltage) 2. Key Function: UP button: Short -press switching%and time, long press for 5 seconds to switch mode, charging mode: in, discharge mode: out SET button: Short pres…
