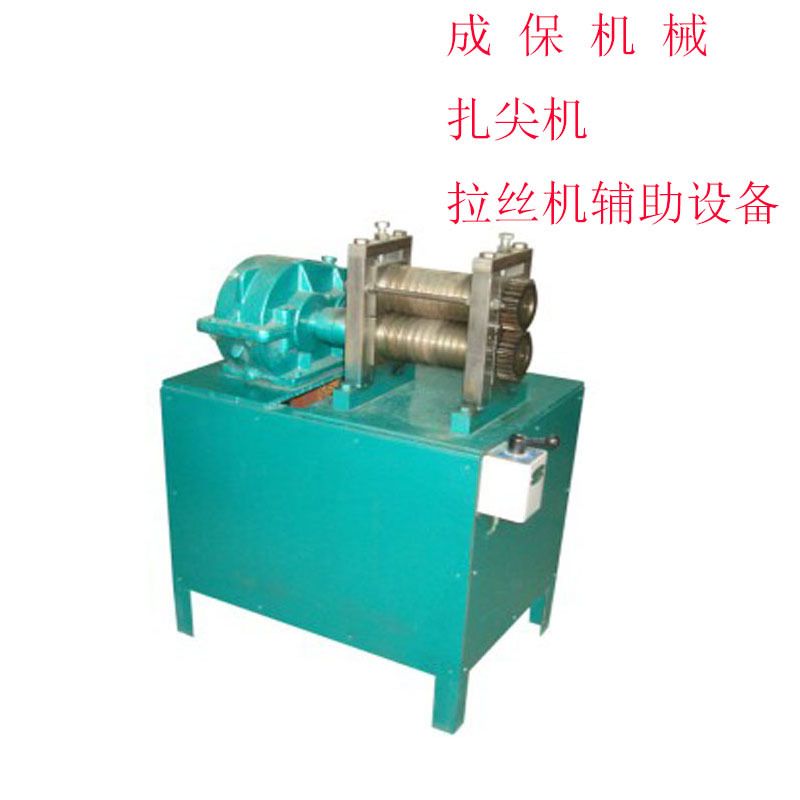

Wire drawing machine equipment, wire drawing machine and auxiliary equipment, head tying machine, butt welding machine, steel bar drawing manufacturer supply

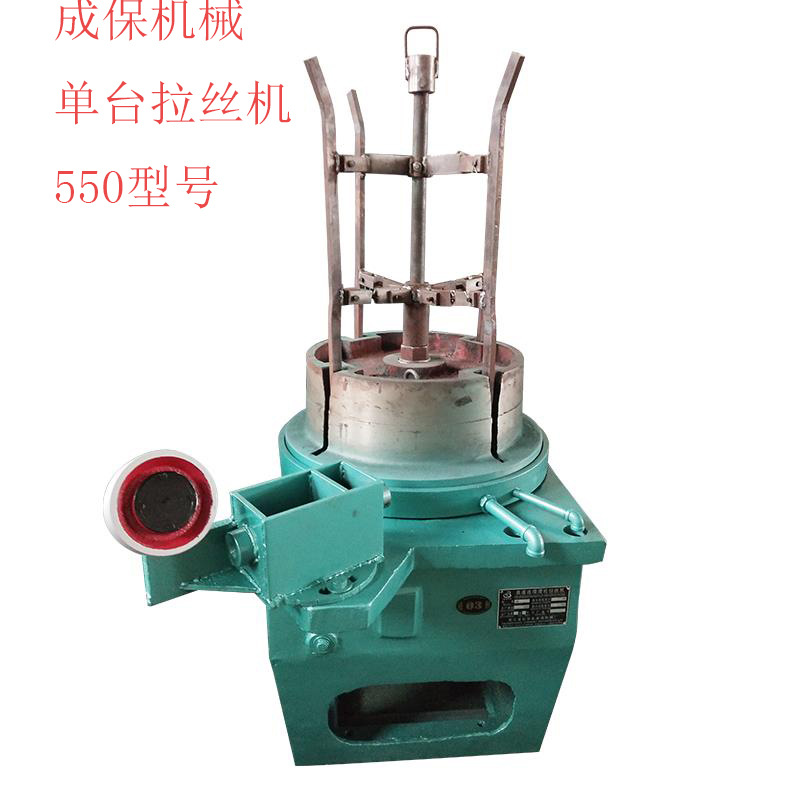

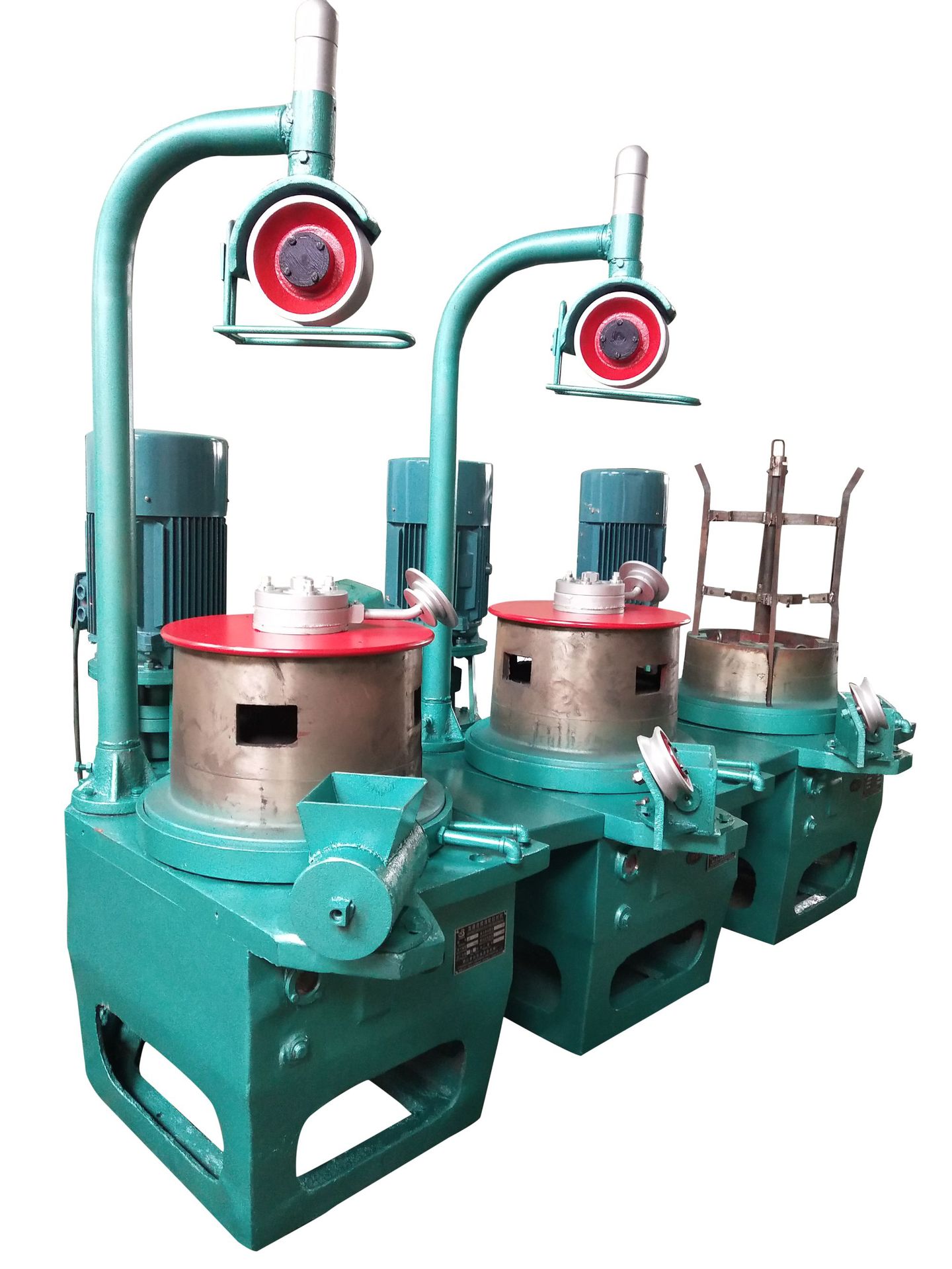

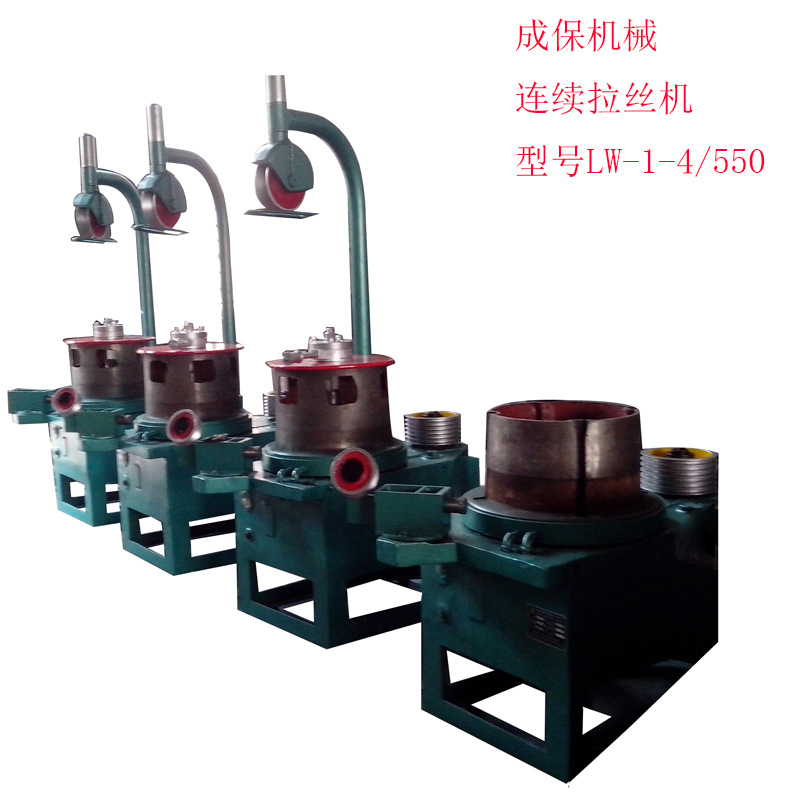

Purpose: It is a high-speed and low-noise pulley-type wire drawing machine that can draw various metal wires. Technical parameters: Large inlet diameter 6.5mm, small outlet diameter 2.5mm, finished product line speed 320m/min, motor power: 18.5KW, drum diameter: 550mm, control method: frequency conversion speed regulation. Efficiency: Reduces the failure rate, high average working speed, and greatly improves production efficiency. Equipped with reel water cooling and mold water cooling Appearance: The appearance of the equipment is structurally optimized and designed according to the flat machine platform, in line with international trends and comparable to imported equipment. The main technical parameters: ( 1) Drawn Material: Mild Steel Q195,Q235 Inlet wire diameter: Φ 6.5mm; Outlet wire diameter: Φ 2.5mm ( 3 ) Small wire diameter: Φ 2.5mm ( 4 ) Large incoming line strength: 750Mpa ( 5 ) Pulling passes: 4- 6 Rolling diameter: 550mm ( 7 ) Pulling speed: 400m/min (depends on many factors, like quality of wire rod, die, etc. ( 8 ) Speed ​​adjustment method: frequency conversion speed adjustment ( 9 ) Motor Power: 18.5 -15 KW ..........................................................…
