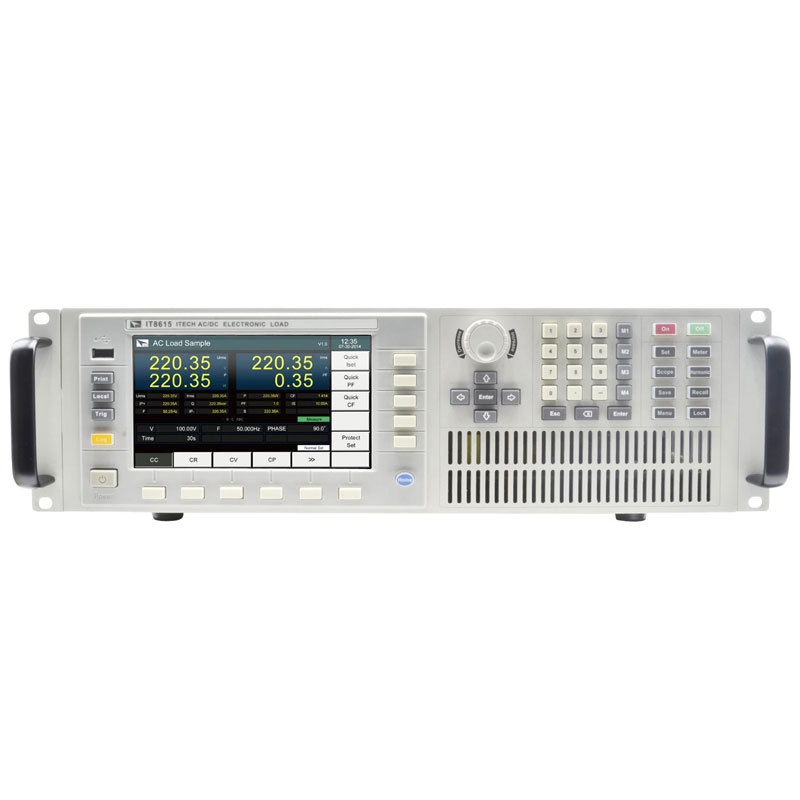

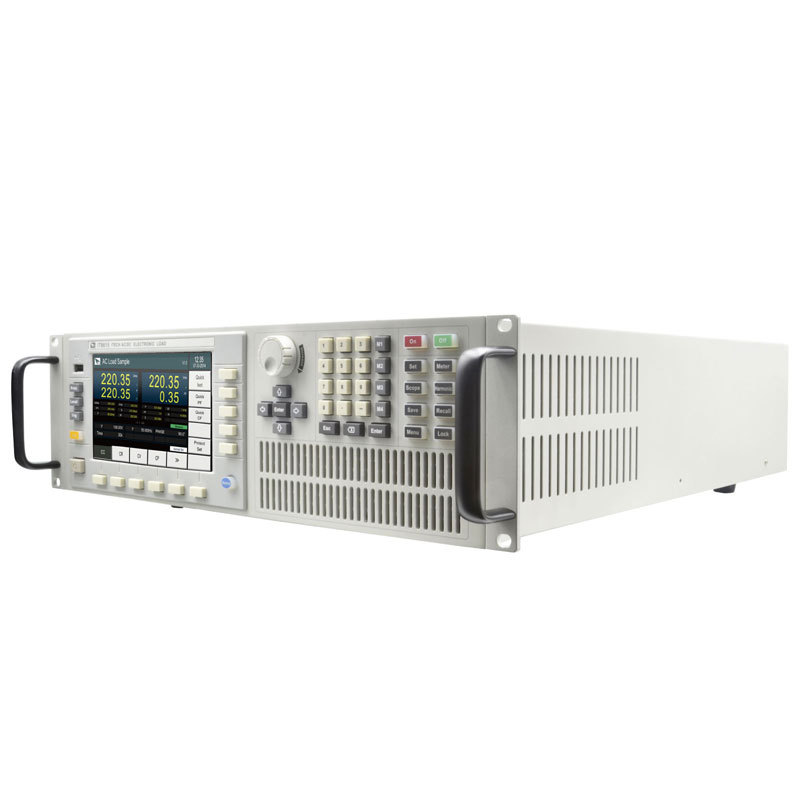

Aidex Programmable Load Meter IT8615 AC/DC Electronic Load Meter Test 420V/20A/180

IT8600 AC/DC electronic load IT8600 is an AC/DC electronic load launched by Adex. The power range of the entire series can reach 14.4kVA and the frequency is adjustable by 45HZ~450HZ.Oscilloscope display function, which can display voltage and current input waveforms.It has parameter measurement modes such as inrush current, peak value, effective value and PF, and can measure voltage harmonics up to 50 times to analyze the performance of the object to be measured.Built-in standard GPIB/LAN/USB communication interface to provide fast and stable communication quality.It can be used to provide solutions for testing of uninterrupted power systems (UPS), inverters, AC power supplies and related AC electronic components. Features Bleak Frequency range: 45~450HZ Bleak Power range: 0-14.4kVA Bleak Voltage range: 15~260Vrms, 50~420Vrms Bleak Current range: 0-160Arms Bleak Parallel/three-phase control *1 Bleak 7 -inch CD display Bleak Oscilloscope waveform display function, display voltage and current waveforms Bleak High-speed AD sampling, real-time waveform capture Bleak Measuring Vrms/Vpk/Vdc/Irms/Ipk/Idc/W/VA/VAR/CF/PF/FREQ Bleak THD (V) parameters up to 50 times can be measured Bleak AC…
