Genuine engine, module, smart robot with accessories

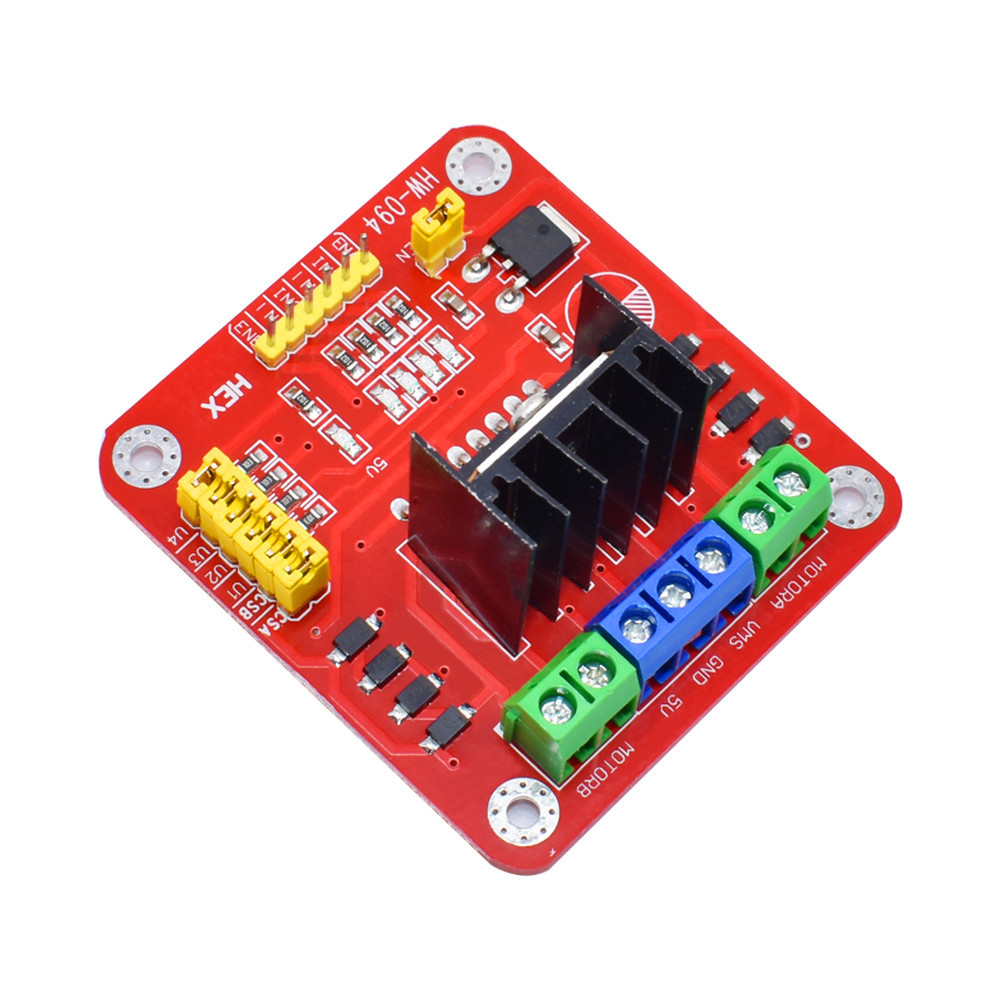

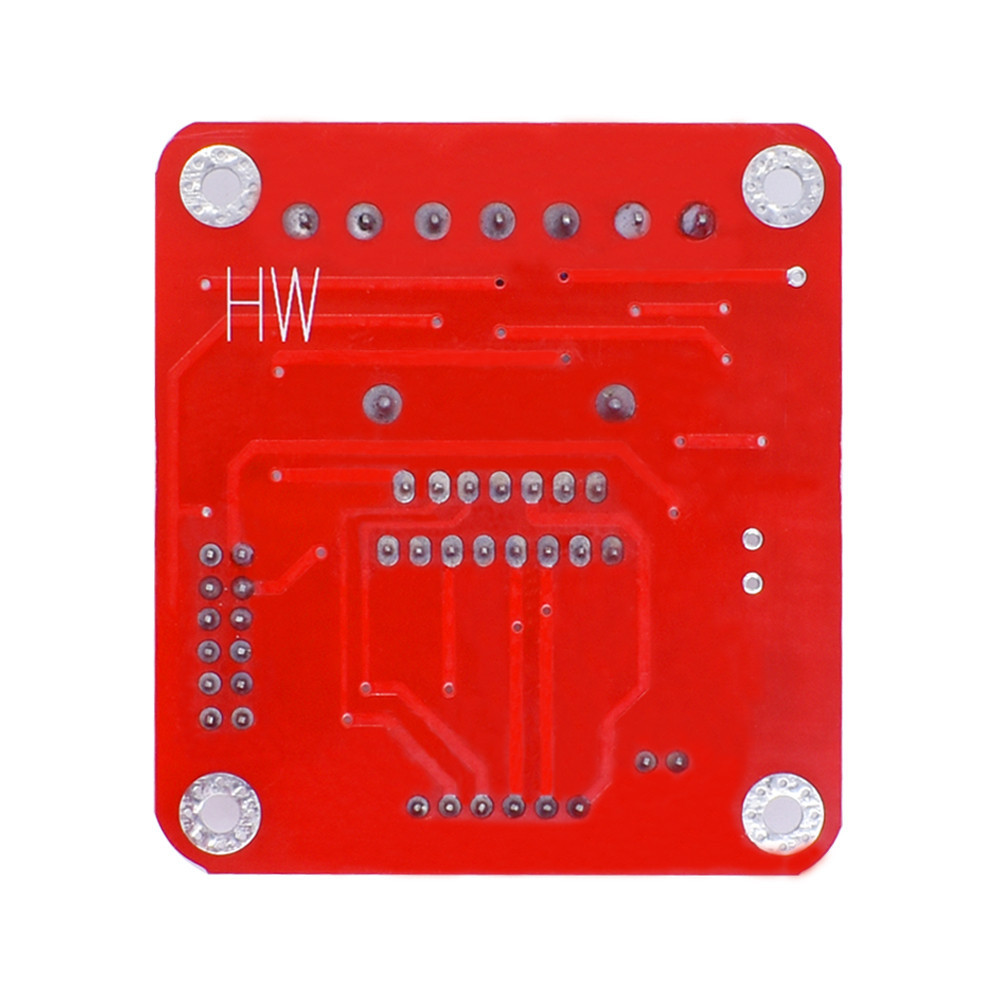

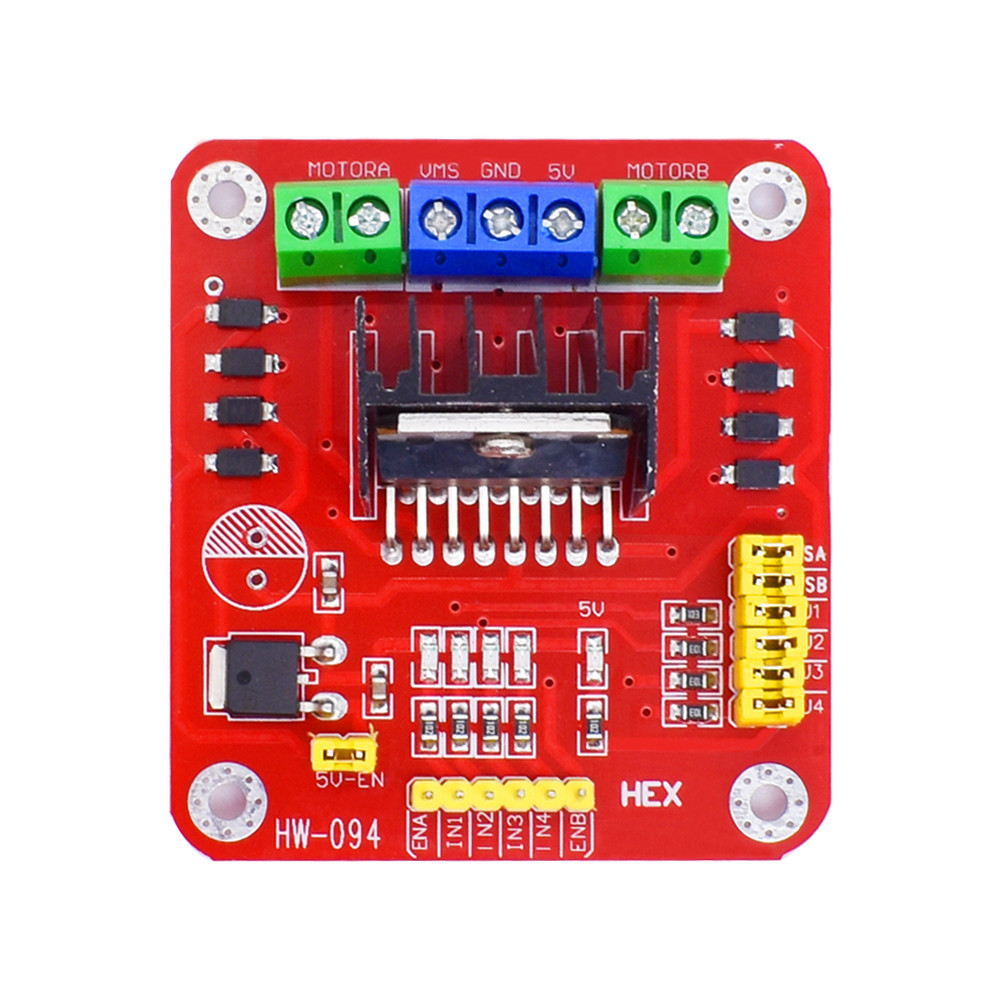

This module has no technical support, please pay attention! Download: http://pan.baidu.com/s/1dDzm4pV ————————————————————————————— Robot surrounding L298N motor drive board Product Description: This L298N driver module, using the L298N chip of ST Company, can directly drive two 3-30V DC motors, and provide 5V output interfaces. It can power the 5V single-chip microcomputer circuit system.In the direction, you can also control the 2 -phase step -to -motor, which is necessary for smart cars. Product parameters: 1. Drive chip: L298N Double H bridge driver chip 2. Drive part of the terminal power range VMS: + 5V ～ + 35V 3. Drive part of the peak current IO: 2A/Bridge 4. Logic part-end power range VSS: 4.5-5.5V 5. Logic part of working current range: 0 ～ 36mA 6. Control signal input voltage range: high level 4.5-5.5V low level 0V 7. High power consumption: 20W 8. Storage temperature: -25 ℃ ～ + 130 ℃ 9. Driver board size: 55mm*60mm*30mm 10. Driving board weight: 33g 11. Other functions: Control direction indicator, power indicator, current detection, and logic part of the board.
