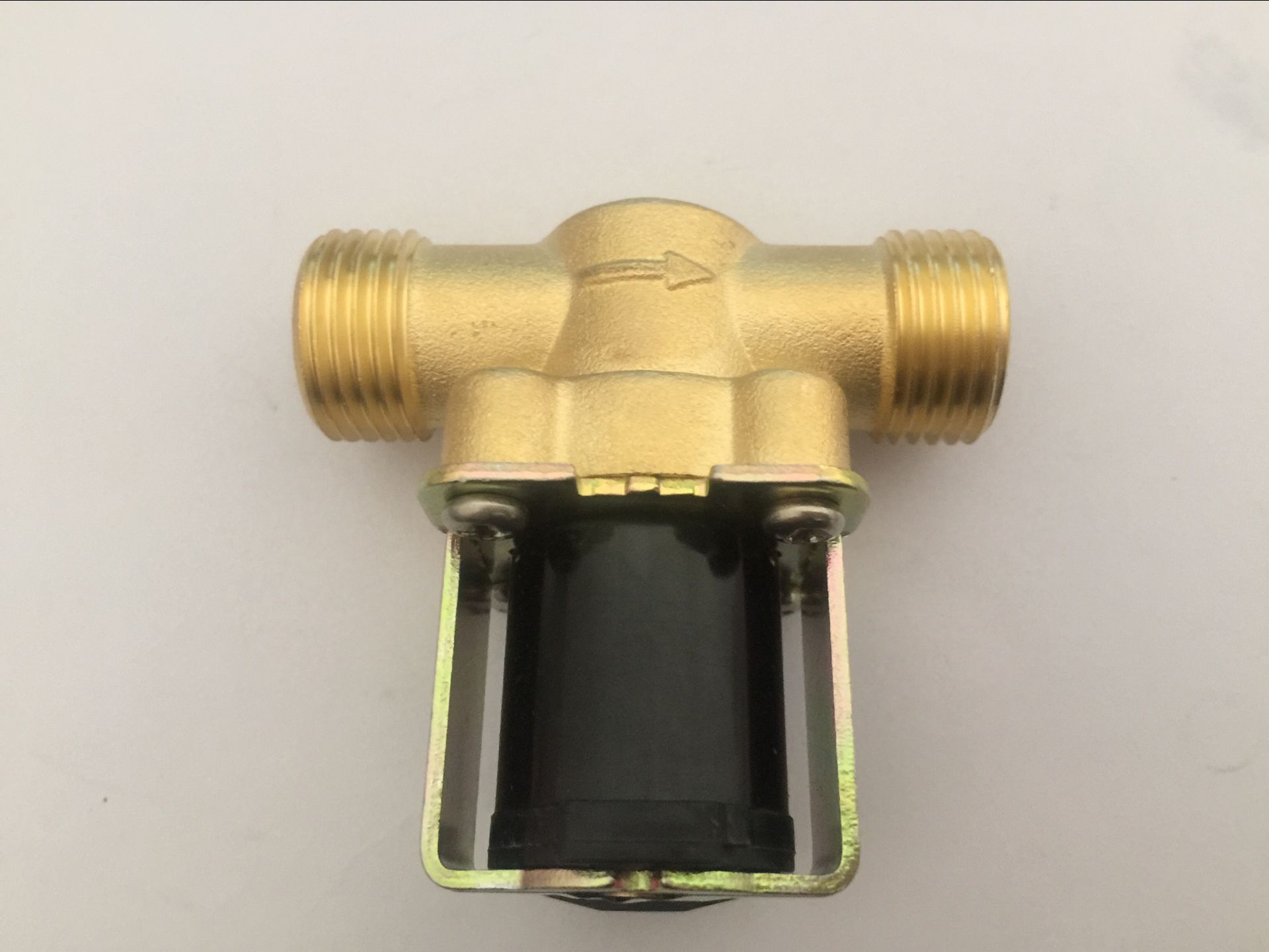

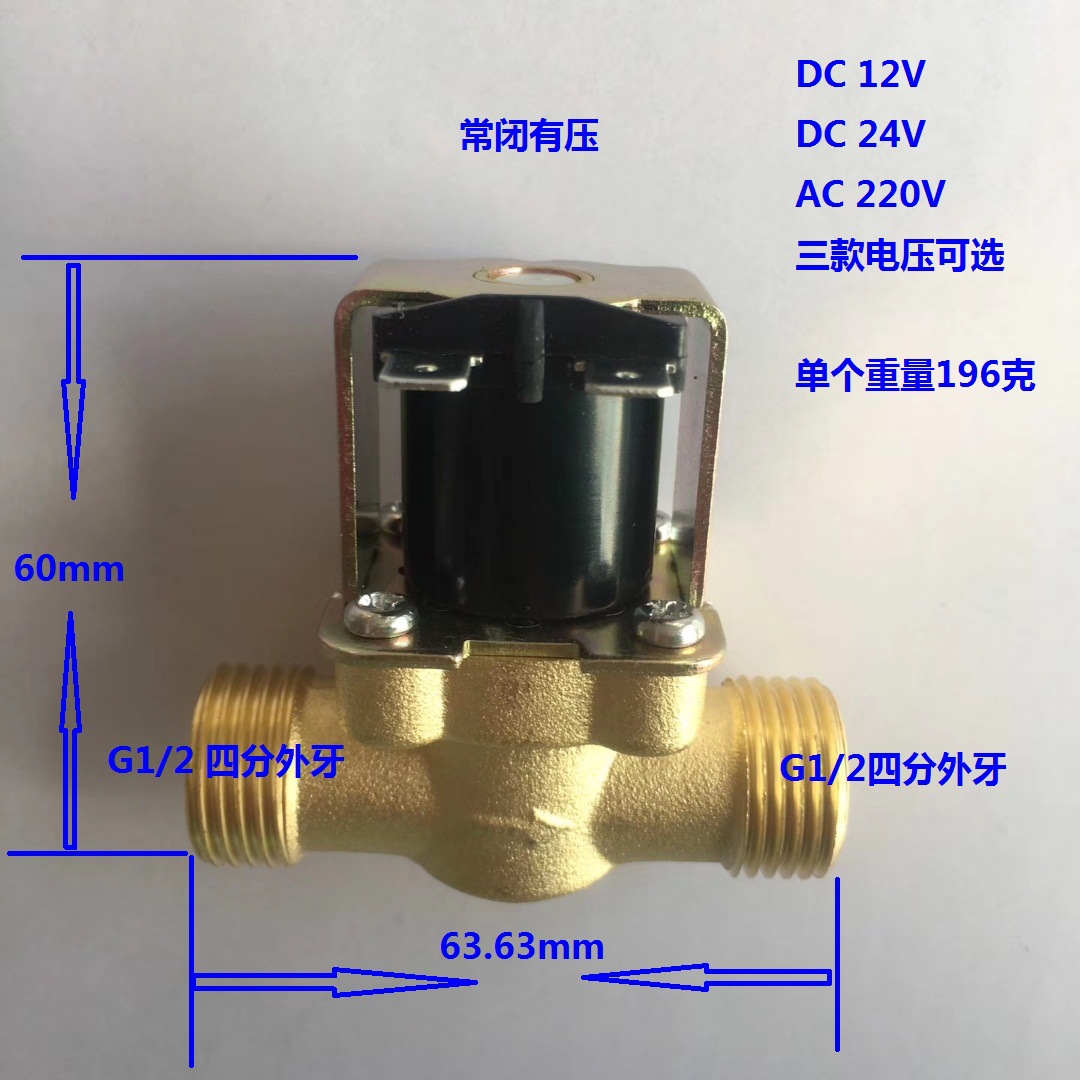

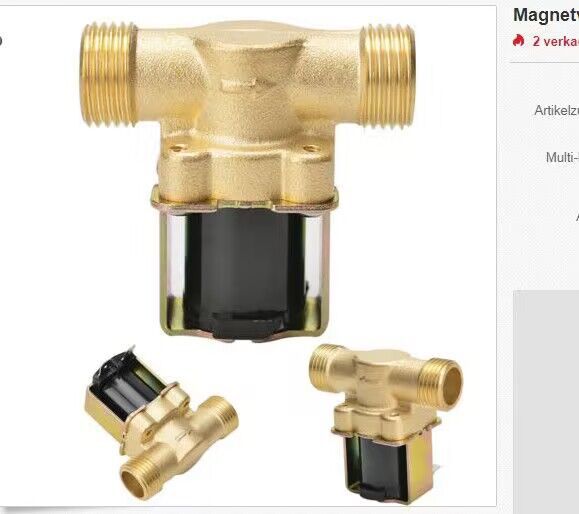

DC, copper electromagnetic valve solar-powered, 12v, 24v, 220v

The solenoid valves are mainly opened, often closed, and the water inlet valve and water discharge valve are explained as follows. Please buyers must choose according to their own requirements to avoid unnecessary losses caused by incomparable use. 1. Frequent opening-refers 2. Normal closed-refers to opening the valve when power is power 3. Water inlet valve-refers 4. Drain valve--is used when the working pressure is ≤400mm water column (without water pressure) Please note that our products are normally closed with pressure valve , Basic parameters: scope of application, applicable fluid control 1 , Rated work voltage : DC12V DC24V AC220V ( 3 Optional) 2 ,Working current : 0.46A ( DC12V ) 0.24A ( DC24V ) 27mA(AC220V) 3 ,power : 5.2W ( DC12V ) 5.6W ( DC24V ) 5.6W ( AC220V ) 4 , House pressure range : 0.02 ~ 0.8Mpa (Instantly bearing the maximum pressure 1.75Mpa ) 5 ,Operating temperature range : 0 ~ 80 ℃ (Low temperature) 0 ~ 120 ℃ (High temperature) (high temperature) 2 Optional) 6 , Coil resistance : 26Ω ( DC12V ) 100Ω ( DC24V ) 7 , Start the characteristic : in 0.8MPa The two ends of the electromagnetic valve coil are applied 0.9 Beyond the voltage value, the solenoid valve shou…
