ESP32-C3 development board ESP32 SuperMini development board ESP32 development board wifi Bluetooth

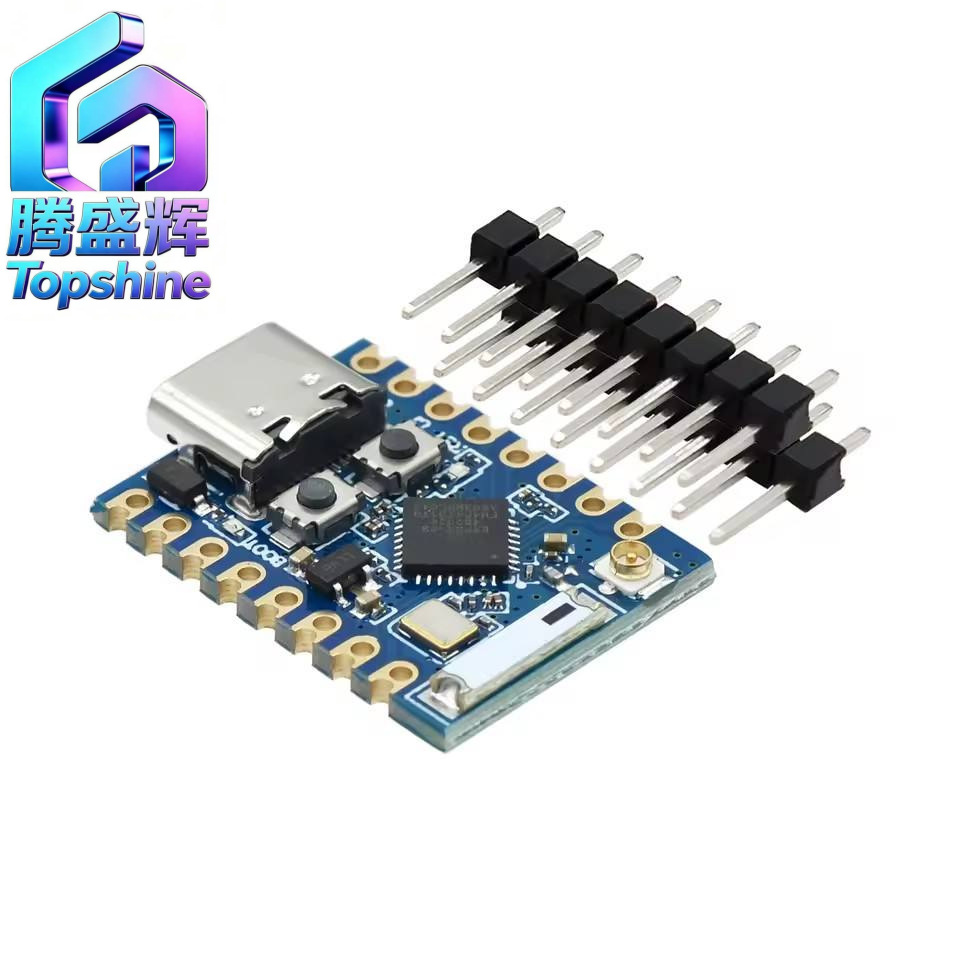

Product Details Introduction to ESP32-C3 SuperMini ESP32C3SuperMini is an IoT mini development board based on Espressif ESP32-C3 WiFi/Bluetooth dual-mode chip.ESP32-C3 is a 32-bit RISC-VCPU, including FPU (Floating Point Unit), which can perform 32-bit single-precision operations and has powerful computing capabilities.It has excellent radio frequency performance and supports IEEE802.11b/g/n WiFi and Bluetooth 5 (LE) protocols.The board comes with an external antenna to enhance signal strength for wireless applications.It also features a small, sophisticated form factor combined with a single-sided surface mount design.It is equipped with rich interfaces, with 11 digital I/Os that can be used as PWM pins and 4 analog I/Os that can be used as ADC pins.It supports four serial interfaces including UART, 12C and SPI.There's also a small reset button and a bootloader mode button on the board. Based on the above characteristics, it is positioned as a high-performance, low-power, cost-effective IoT mini development board, suitable for low-power IoT applications and wireless wearable applications. External power supply If external power supply is required, just connect the + stage of the e…
