Engine, module, smart robot, direct factory sales

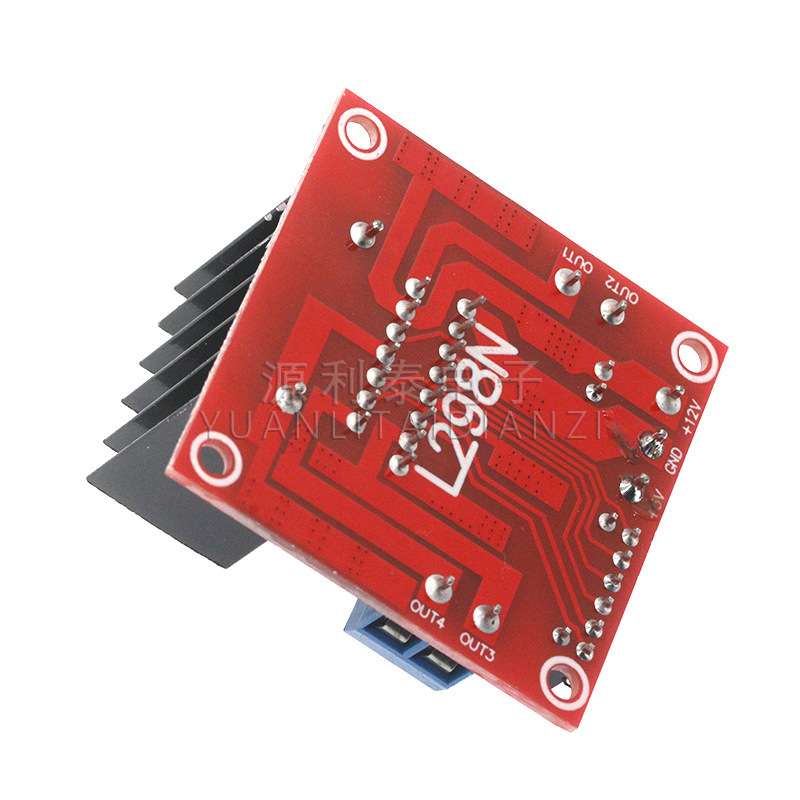

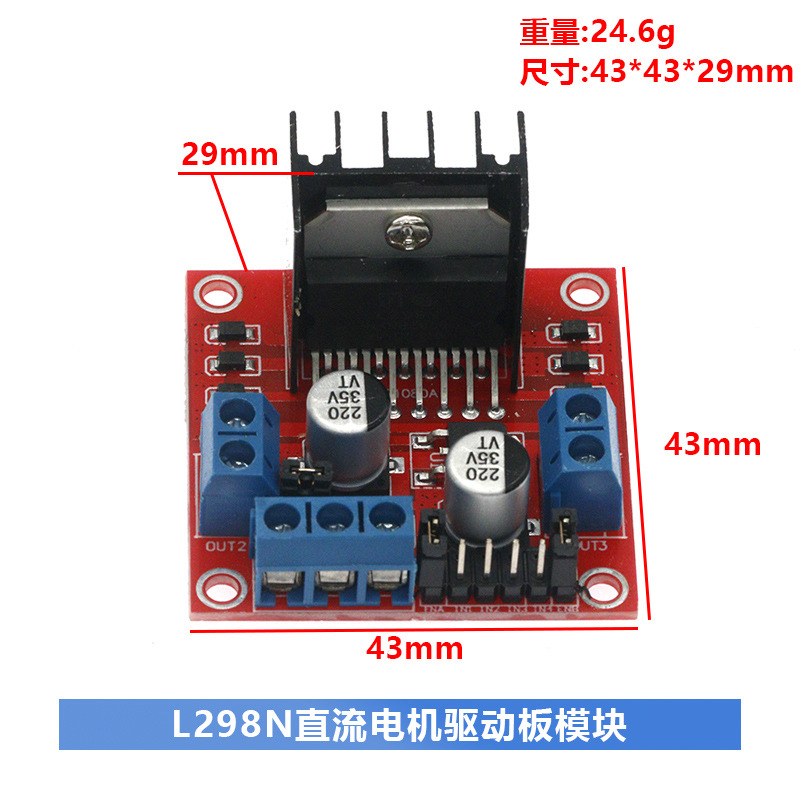

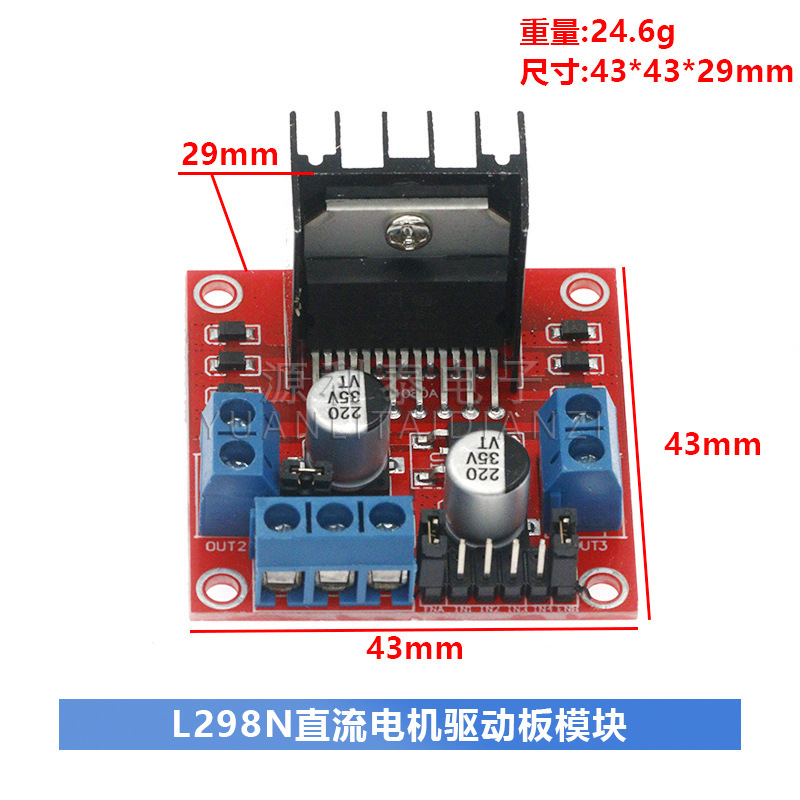

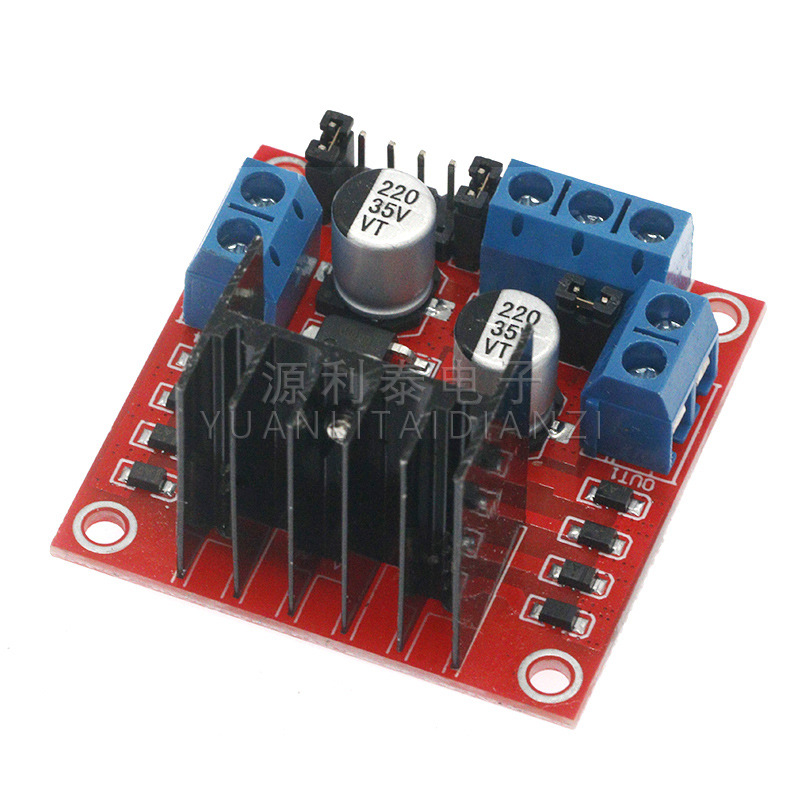

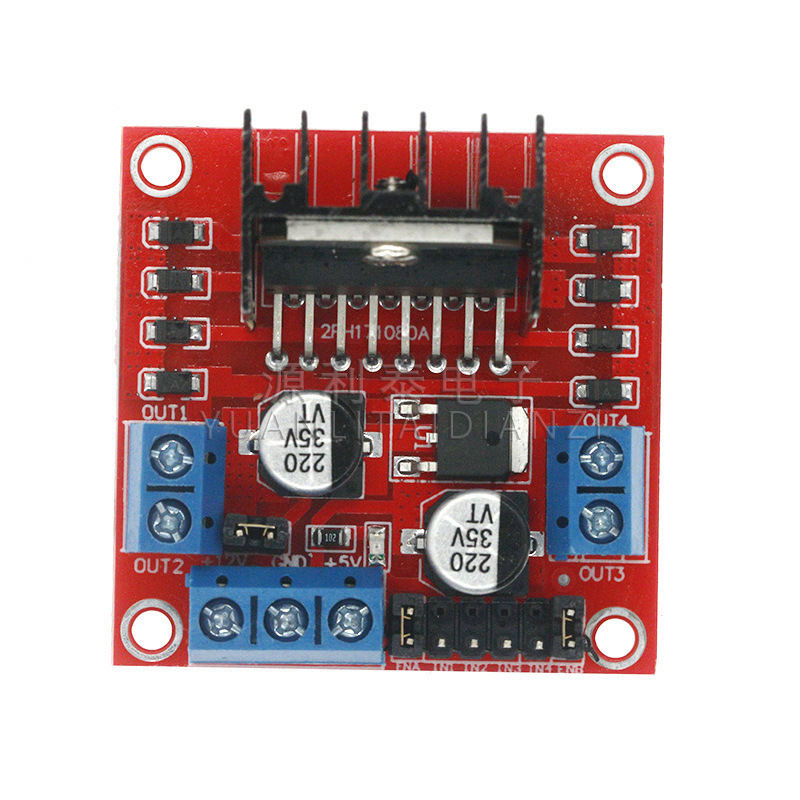

L298N motor driver module DC walks into motor robots      (Details provide Chinese and English description) Chinese description:         ☆ Basic attributes ☆ Module name Double H Bridge Motor Drive Module Operating mode H bridge drive (Double road) Master chip L298N package style 1 sale Logic voltage 5V Drive voltage 5V-35V Logic flow 0mA-36mA Drive current 2A (MAX single bridge) storage temperature -20 ℃ to +135 ℃ Maximum power 25W weight 30g Peripheral size 43*43*27mm Product features: ★ This module uses the L298N of ST Company as the main driver chip. It has the characteristics of strong driving capacity, low heat transmission, and strong anti -interference ability. ★ This module can use the built -in 78M05 to take power from the power supply part of the power supply, but in order to avoid damage to the voltage chip, when using the 12V driver voltage, use external 5V logic power supply. ★ This module uses a large -capacity filter capacitor to continuously protect the diode, which can improve reliability. ★ This module is available in the audience, please take it directly, thank you.      Things to note: 1. When your driver voltage (the identifier in the figure above is 12V input…
